F-LINE · HYDRAULIC SYSTEMS & FITTINGS

F-LINE DIN 2353 Welding fittings

Specify F-LINE weld connectors, nipples, reducers and weld bulkhead connections for hydraulic tube assemblies that require a welded transition. Match the weld end to tube material and wall thickness.

Query productDownload catalogue ↓
DIN 2353 cutting-ring fitting cross-section
Metric hydraulic tube connections
DIN 2353 · 24° cone

Choose a configuration

F-LINE DIN 2353 welding connectors

Welding connectors

Join a cutting-ring tube connection to a weld-end body.

Configuration illustration; supplied variant may differ.

Query product →

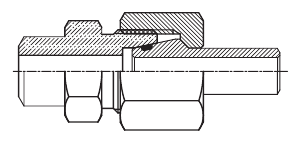

F-LINE DIN 2353 welding connectors with nipple

Welding connectors with nipple

Specify the welding connector and its matched nipple assembly.

Configuration illustration; supplied variant may differ.

Query product →
F-LINE DIN 2353 welding nipples

Welding nipples

Select a welding nipple for the required tube dimensions.

Configuration illustration; supplied variant may differ.

Query product →
F-LINE DIN 2353 reducing welding nipples

Reducing welding nipples

Reduce the tube connection at the welding nipple.

Configuration illustration; supplied variant may differ.

Query product →

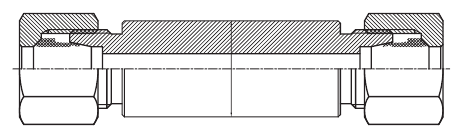

F-LINE DIN 2353 weld bulkhead connections

Weld bulkhead connections

Pass a tube assembly through a weld-in bulkhead connection.

Configuration illustration; supplied variant may differ.

Query product →

Where this configuration fits

Weld connections can be selected where the system layout calls for a welded tube transition. The completed assembly depends on both fitting selection and weld quality; the tube, weld and seals remain part of the pressure boundary.

Details to include in your enquiry

  • State tube outside diameter, wall thickness, material and weld-end preparation.
  • Select a nipple, a complete welding connector or a weld bulkhead arrangement.
  • Specify the welding procedure, inspection and documentation required by the project.
  • Follow the supplied procedure for protecting or removing seals during welding.

Sizes, materials and supplied condition

Specify the tube outside diameter, LL/L/S series, material and every connection. The overall catalogue covers 4–42 mm tube, but an individual configuration may have a narrower range. Carbon steel, 316L and 316Ti can be included in an enquiry, subject to confirmation of the supplied item.

State whether you require complete fittings or bodies only. Include working pressure, peak pressure, temperature, medium and any certificate requirements so the complete assembly can be checked.

Select materials, seals and pressure capability →

Technical selection guides

Questions answered

How do I specify welding fittings?

Identify the configuration, tube diameter and series, all connection threads and seals, material, quantity and operating conditions. Send a marked sketch when port positions or different end sizes matter.

Are the catalogue dimensions suitable for final fabrication?

Use them to identify and enquire about the configuration. Obtain the order-specific drawing and confirmed pressure rating before fabrication or installation.
